The excavation-based approach that addresses groundwater and hydrostatic pressure at the foundation exterior, not after it has already come inside.
Exterior waterproofing is the most comprehensive approach to eliminating basement moisture because it addresses the problem where it originates: at the exterior face of the foundation wall. Rather than managing water that has already entered the building envelope, this method stops it from reaching the wall surface entirely. The process begins with full excavation around the affected perimeter, which requires removing soil from the foundation level down to the footing to expose the complete wall surface. This depth is critical because partial excavation leaves untreated wall area below grade where hydrostatic pressure and soil moisture continue to act against the foundation.

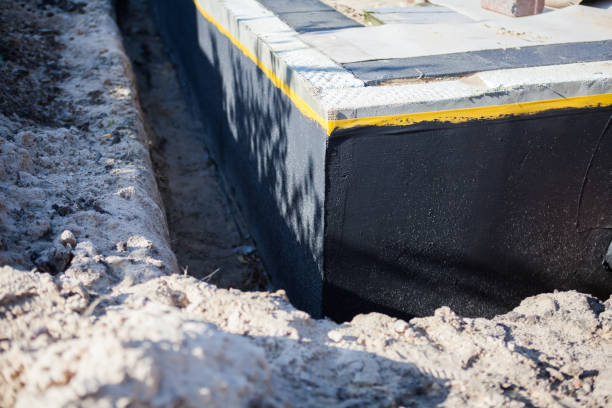

After full excavation, the foundation wall preparation phase determines how well the finished membrane performs over time. Our teams in Malvern remove all loose material, clean efflorescence with appropriate treatments, and fill structural cracks before membrane application. This prep phase is not optional; applying membrane to an inadequately prepared surface creates adhesion failure zones where water can migrate behind the waterproofing layer. The rubberized membrane we specify for Malvern applications is rated for continuous soil contact and maintains flexibility across the temperature range experienced in Malvern, PA climates.
Drainage board, sometimes called dimple board or dimple mat, is installed over the cured membrane to create a capillary break between the waterproofed wall surface and the surrounding soil. This profiled plastic sheet holds the soil away from the membrane surface and channels any water that migrates through the soil downward to the footing drain rather than allowing it to accumulate against the wall. The dimple profile creates a continuous air gap that eliminates the direct hydraulic contact between saturated soil and the foundation surface. At the base of the excavation, a perforated footing drain pipe is laid in a gravel bed alongside the footing, collects the water directed downward by the drainage board, and conveys it to daylight or to a sump pit inside the structure.
Seasonal timing for exterior waterproofing in Malvern is often a question homeowners raise during the assessment. While spring and fall are typically optimal in Malvern, PA climates for this type of work, late summer installations are also common and effective when the excavation conditions and membrane cure windows align. We monitor extended forecasts when scheduling exterior projects and build adequate cure time into the project timeline before backfill begins. Winter work is evaluated on a case-by-case basis depending on frost depth, ground conditions, and the urgency of the moisture problem. We are transparent about seasonal limitations and advise homeowners accurately rather than scheduling work that conditions do not support.
When advising Malvern homeowners on exterior versus interior approaches, we document specific evidence of water entry mechanism: wall seepage at mid-height indicates hydrostatic pressure against the exterior wall surface, which exterior waterproofing directly resolves. Water entering at the floor-wall joint is typically addressed by interior drainage. Many older Malvern homes show both conditions simultaneously, and a combined approach treating the exterior walls while installing perimeter interior drainage is sometimes the most comprehensive solution. We explain the evidence and the logic behind every recommendation so homeowners can make informed decisions about their specific structure.
Excavation expertise, proven materials, and a warranty that means something.
Excavation to footing level is non-negotiable for effective exterior waterproofing. We do not offer partial-depth options that leave untreated wall area below grade.
The membrane we specify is rated for continuous soil contact, remains flexible across Malvern, PA temperature ranges, and bridges existing micro-fissures in the foundation surface.
We stand behind the work we perform in Malvern with written documentation of what is covered, for how long, and how to make a claim if needed.
Complete exterior foundation protection from excavation through backfill.
Our full perimeter packages address every section of exposed foundation wall, ensuring no untreated zones remain that could later become moisture entry points.
Learn moreFor Malvern homes where moisture intrusion is isolated to specific wall sections, targeted exterior treatment of affected areas provides effective protection at lower cost than full perimeter work.
Get an assessmentOriginal factory-applied exterior waterproofing coatings on most Malvern homes from the 1970s through 1990s have reached the end of their effective service life. Re-application restores protection without the cost of a new foundation.
Schedule a reviewThe footing pipe and drainage board are the components that keep the membrane working as designed by eliminating hydrostatic pressure buildup at the wall base.
Learn about drainageBasement window wells in Malvern homes are a common point of exterior water entry. Proper well drainage, liner installation, and connection to the perimeter footing pipe prevents well overflow from reaching window openings.
Address window wellsBackfill compaction, surface grade correction to direct water away from the foundation, and landscape restoration are included in our Malvern exterior waterproofing projects.
See full scopeA clear, documented process with no hidden steps.
Site evaluation covers soil type, existing drainage, foundation material, and any evidence of prior waterproofing.
Full excavation to footing depth along affected wall sections exposes the foundation surface for prep and membrane work. All excavated material is staged for controlled backfill.
Each phase is inspected before the next begins to ensure material performance is not compromised by sequencing shortcuts.
Landscape restoration and grade verification complete the project before final documentation is provided to the homeowner.
Words from customers after their first full wet season with exterior waterproofing in place.
After 12 years of dealing with wall seepage in our older home in Malvern, the exterior waterproofing finally eliminated it. The technician explained exactly why the interior approaches were only managing the water rather than stopping it, and the exterior project confirmed that assessment.
I appreciated that they were honest about what exterior waterproofing can and cannot solve. They did not oversell it as a universal fix but explained specifically why it was the right approach for my particular moisture pattern. That kind of honesty builds trust.
The window well drainage connection they added during the project solved a secondary problem I had been ignoring for years. The well used to fill and drain slowly through the window frame during storms. Connecting it to the perimeter footing pipe eliminated that entirely.
No vague promises, just accurate information about what exterior waterproofing delivers.
Excavation disruption is real and should be factored into the project decision. Our assessment walks around the full perimeter to document every item in the excavation zone and note which plants, structures, or materials are at risk. Homeowners who want to preserve specific plantings can arrange for a landscaper to relocate them before excavation begins. We restore the grade and clean the site thoroughly, but landscape features within the trench footprint are unavoidably affected by the process.
Exterior waterproofing and interior drainage address moisture differently and are not always in direct competition. Exterior treatment prevents water from reaching the wall and basement interior by treating the source. Interior drainage collects water that has already entered the building envelope and removes it via a sump system. For wall seepage caused by hydrostatic pressure and deteriorated exterior waterproofing, the exterior approach is superior because it eliminates the pressure and seals the wall surface. Interior drainage alone leaves the wall wet, which accelerates efflorescence, spalling, and in extreme cases structural deterioration over time. For floor-level water entry due to ground pressure below the footing, interior drainage is the appropriate tool.
{Quality exterior waterproofing using modern rubberized membrane systems can protect a foundation for 20 to 30 or more years when properly installed on a well-prepared surface. The original factory-applied bituminous coatings used on homes built through the 1980s typically had a design life of 10 to 15 years under favorable soil conditions. Modern rubberized membrane materials are substantially more durable, maintain flexibility under soil movement and temperature cycling, and retain adhesion over extended periods. The key variable in longevity is surface preparation quality and membrane thickness applied; underprepared substrates and thin single-pass applications consistently underperform.|Longevity depends on the membrane product specified, surface prep quality, and subsequent drainage board and footing pipe function. When drainage board is properly installed and the footing pipe remains clear and functional, the membrane experiences minimal hydrostatic load because water is redirected before it can accumulate against the wall surface. Regular inspection of the exterior grade around the foundation and the footing drain outlet ensures the drainage system continues to function as designed over the years.}
For homeowners with active moisture problems in winter, we evaluate whether interim measures can stabilize the situation until conditions support exterior work. In some cases, temporary interior drainage can reduce immediate water damage risk while the exterior project is planned for spring. We are transparent about what winter conditions allow and advise accordingly rather than scheduling work that conditions do not support.
Landscaping impact is real but temporary for most items. Lawn areas typically recover within one to two growing seasons after backfill and reseeding. Established shrubs that are carefully relocated before excavation can be successfully replanted in the same beds after completion. Large mature trees within the excavation zone require a separate arborist evaluation to determine whether root disruption at excavation depth would pose a risk to the tree's health. We document these considerations clearly during the assessment.
We do not quote specific ROI percentages because every home and every market is different. What we do is document the specific risks of continued moisture intrusion in your Malvern home and provide a clear picture of what exterior waterproofing addresses versus what it does not. Homeowners who understand both the protection provided and its limitations are consistently more satisfied with their investment than those who received oversimplified answers.
